OMG70C-2

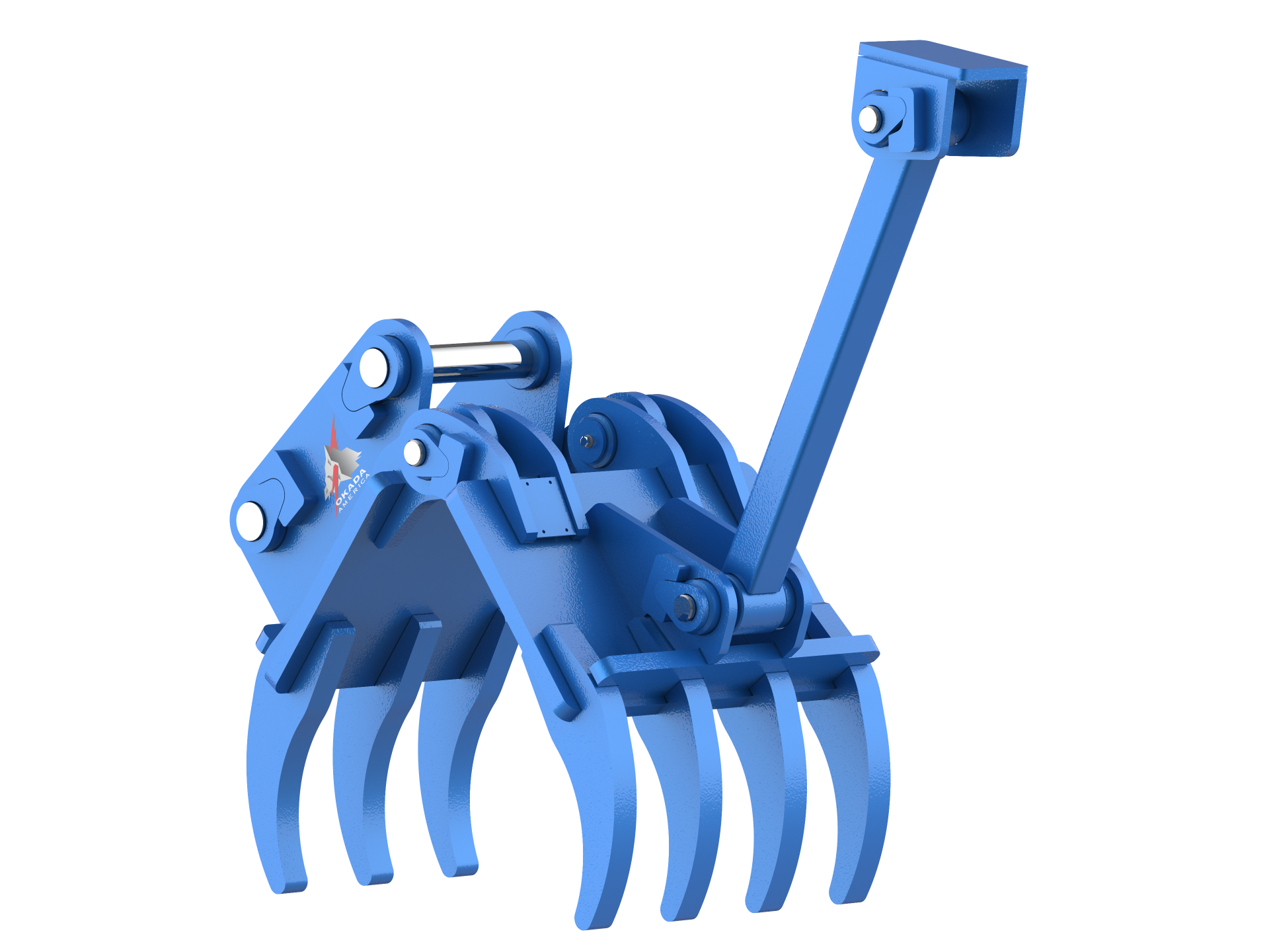

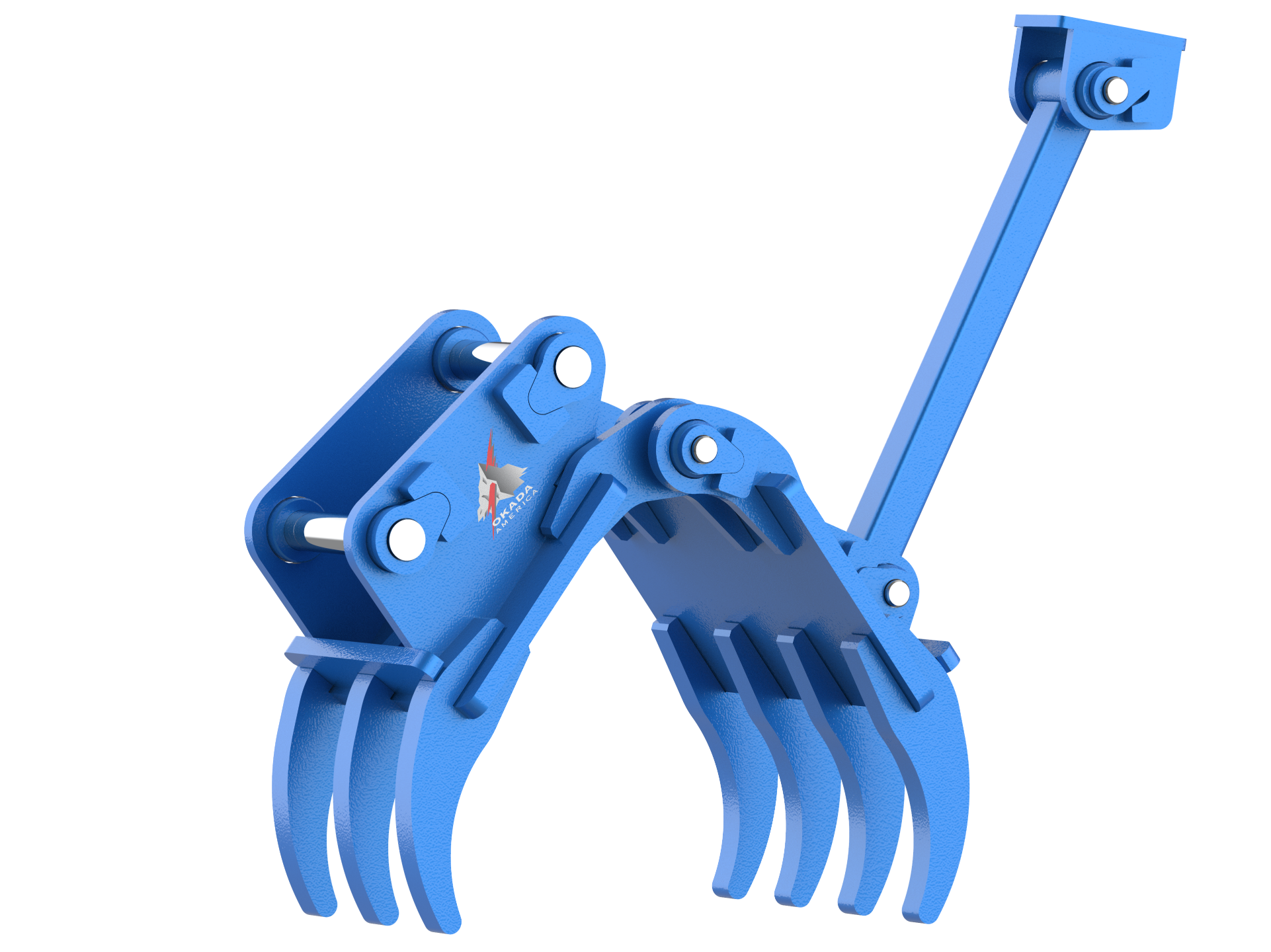

NON-ROTATING MECHANICAL GRAPPLE

OMG Demolition and Material Handling Grapple Designed to excel in severe, heavy-duty demolition and material/waste handling applications.

The fully versatile OMG Demolition and Material Handling Grapple provides performance, production and profits in a wide-range of applications and operations:

  • Scrap yards (outperform magnets 3 to 1)
  • Recycling facilities (easily sort and separate material and quickly load crushers or shredders)
  • Demolition (residential, commercial and industrial demolition is easier and safer)
  • Land clearing (tree stumps can be extracted quickly)
  • Reconstruction (no need for cable-and-sling as large, bulky objects are moved easily)
  • Rock handling (precisely pick and place rip-rap and load shot rock without damaging your haul truck)
    Whether your job calls for demolition, scrap handling, rock handling, log and pipe handling or land clearing, the MG Demolition and Material Handling Grapple has what it takes to get your job done.
DOWNLOAD BROCHUREDealer Logincontact sales
OPERATING WEIGHTLBS
KG
MAX CLAW OPENINGINCHES
MM
CARRIER WEIGHT RANGE1000 LBS.
M TON
CLAW CLOSEDINCHES
MM
UPPER CLAW TINE WIDTHMM
INCHES
LOWER CENTER TINE WIDTHINCHES
MM
LOWER CLAW WIDTHINCHES
MM
HEIGHTMM
INCHES
UPPER CLAW WIDTHINCHES
MM
LOWER CLAW OUTER TINE WIDTHINCHES
MM
OMG70C-2
OPERATING WEIGHTLBS67000
KG-
MAX CLAW OPENINGINCHES116
MM-
CARRIER WEIGHT RANGE1000 LBS.65-88
M TON-
CLAW CLOSEDINCHES20
MM-
UPPER CLAW TINE WIDTHMM-
INCHES10
LOWER CENTER TINE WIDTHINCHES10
MM-
LOWER CLAW WIDTHINCHES56
MM-
HEIGHTMM-
INCHES56
UPPER CLAW WIDTHINCHES34
MM-
LOWER CLAW OUTER TINE WIDTHINCHES10
MM-
OMG100C-2
OPERATING WEIGHTLBS7000
KG-
MAX CLAW OPENINGINCHES130
MM-
CARRIER WEIGHT RANGE1000 LBS.88-110
M TON-
CLAW CLOSEDINCHES22
MM-
UPPER CLAW TINE WIDTHMM-
INCHES11
LOWER CENTER TINE WIDTHINCHES11
MM-
LOWER CLAW WIDTHINCHES61
MM-
HEIGHTMM-
INCHES72
UPPER CLAW WIDTHINCHES36
MM-
LOWER CLAW OUTER TINE WIDTHINCHES11
MM-

The OMG grapple has earned its reputation with by performing well in tuff applications.The OMG Demolition and Material Handling Grapple continues that tradition with a design strength that is unparalleled in the industry as it can withstand the full breakout force of the excavator on a single tine.The OMG series is offered in five different sizes for excavators ranging from 25,000 to 110,000 pounds. And, they provide flexibility in mounting as the Demolition and Material Handling Grapple can be mounted directly on the bucket pins (pin-on) or mounted using a pin-grabbing coupler.

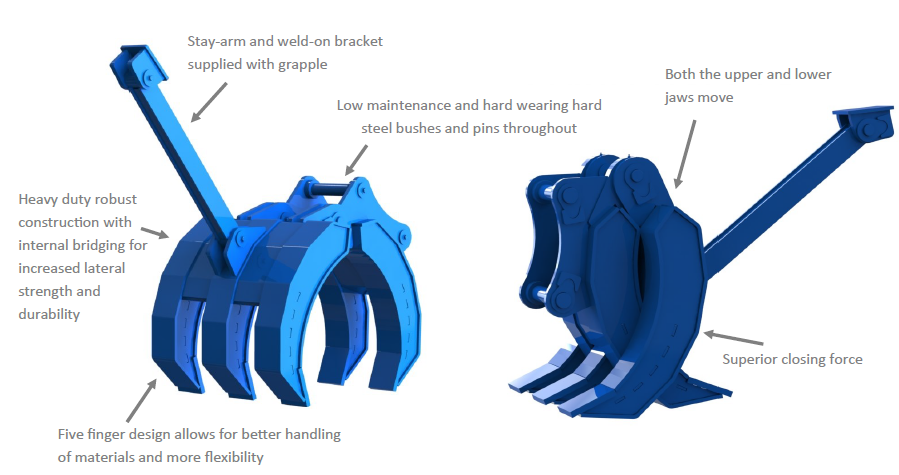

Key features include:

  • Heavy-duty AR500 material used in the tips and AR400 shells made of high tensile, high alloy, abrasion-resistant material in high wear areas
  • Reinforced heavy-duty box tine design for maximum strength
  • Large hardended pivot sleeves and bronze bushings
  • Adjustable stiff link
  • Wider curved bucket design produces larger volume of material per load
  • Full one-year 2,0000 hour warranty (including finger tips)
