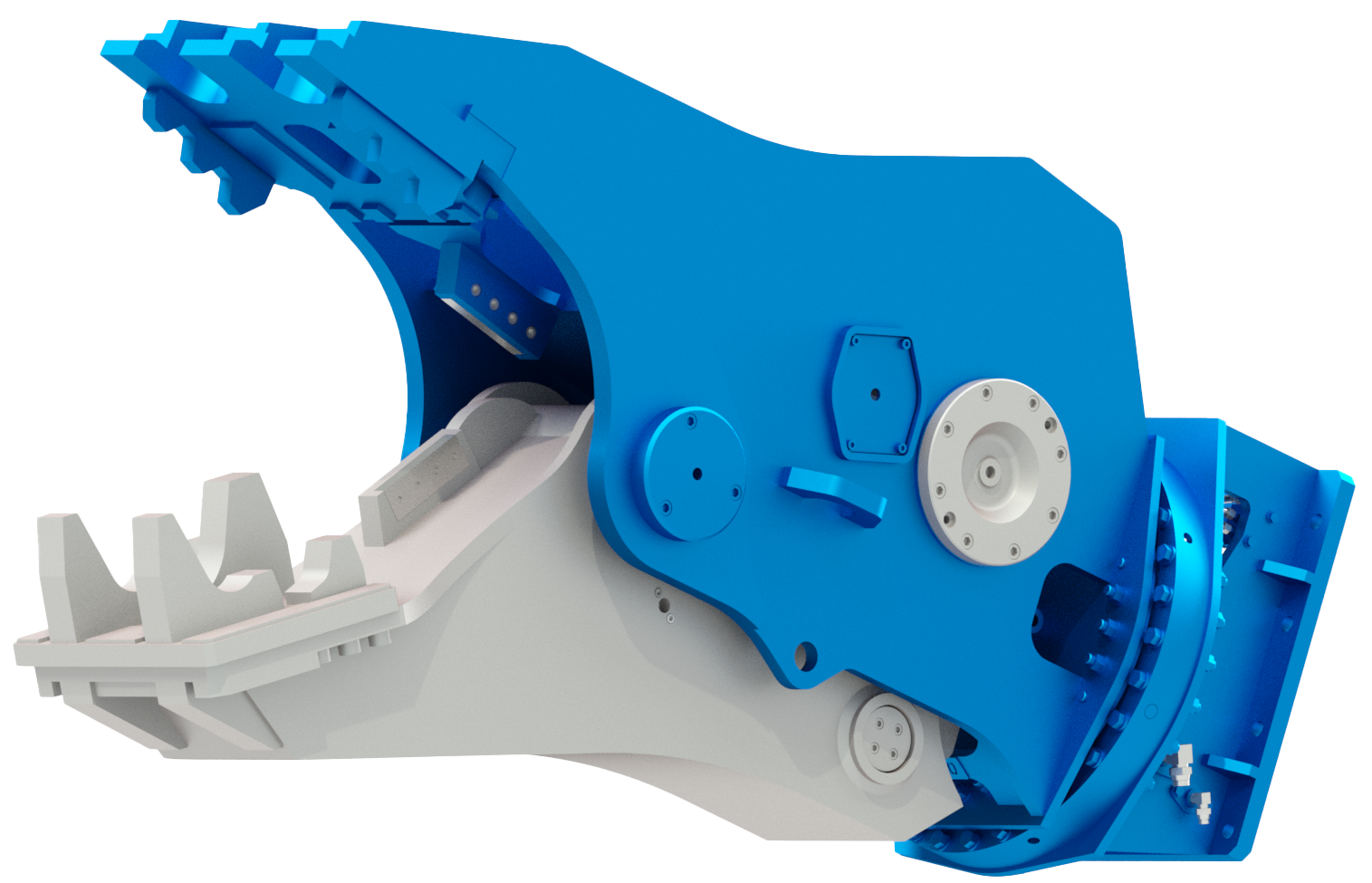

ORC380A with replaceable tooth pads
Okada rotating pulverizers were developed as a result of a growing need to reduce disposal volume and recycle concrete waste created during concrete building demolition. The flat, wide jaw design and an internal speed valve make it possible to grab and crush large sections of concrete quickly.
| OPERATING WEIGHT | LBS |
| KG | |
| OIL FLOW | GPM |
| LPM | |
| OPERATING PRESSURE | PSI |
| BAR | |
| OVERALL LENGTH | INCHES |
| MM | |
| OVERALL HEIGHT | INCHES |
| MM | |
| MAX JAW OPENING | INCHES |
| MM | |
| CUTTER BLADE LENGTH | INCHES |
| MM | |
| CRUSHING FORCE AT CENTER OF JAW | US Tons |
| kN | |
| CARRIER WEIGHT RANGE | 1000 LBS. |
| M TON | |

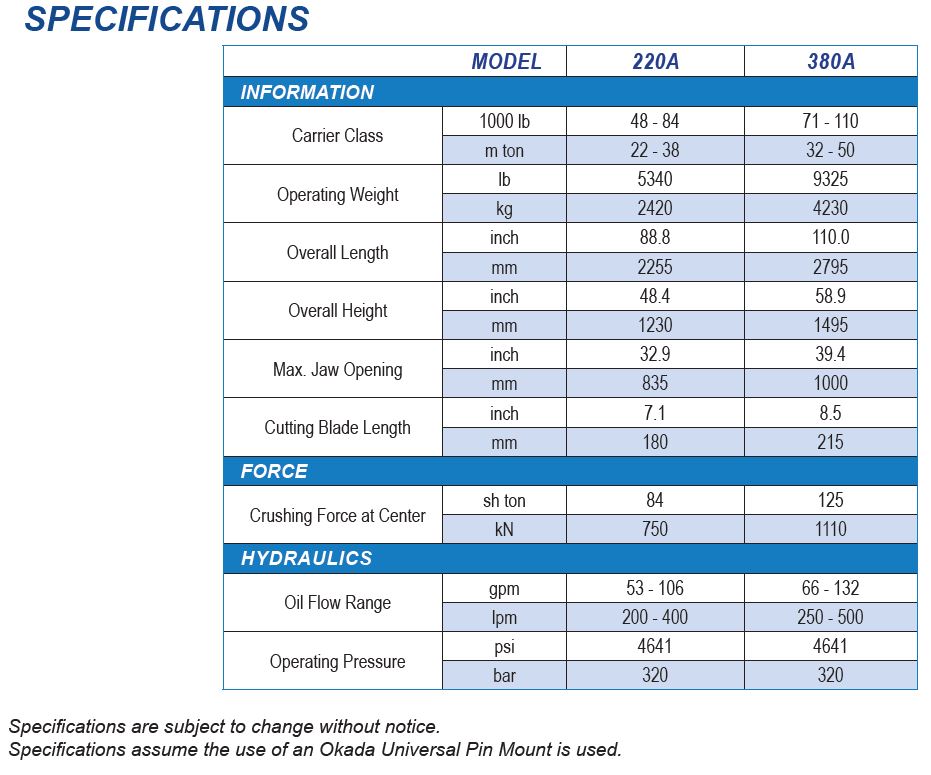

| ORC380A | ||
|---|---|---|
| OPERATING WEIGHT | LBS | 9325 |
| KG | 4230 | |
| OIL FLOW | GPM | 66-132 |
| LPM | 250-500 | |
| OPERATING PRESSURE | PSI | 4641 |
| BAR | 320 | |
| OVERALL LENGTH | INCHES | 110 |
| MM | 2795 | |
| OVERALL HEIGHT | INCHES | 58.9 |
| MM | 1495 | |
| MAX JAW OPENING | INCHES | 39.4 |
| MM | 1000 | |
| CUTTER BLADE LENGTH | INCHES | 8.5 |
| MM | 215 | |
| CRUSHING FORCE AT CENTER OF JAW | US Tons | 125 |
| kN | 1110 | |
| CARRIER WEIGHT RANGE | 1000 LBS. | 71-110 |
| M TON | 32-50 | |
| ORC220A | ||
|---|---|---|
| OPERATING WEIGHT | LBS | 5340 |
| KG | 2420 | |
| OIL FLOW | GPM | 53-106 |
| LPM | 200-400 | |
| OPERATING PRESSURE | PSI | 4600 |
| BAR | 32 | |
| OVERALL LENGTH | INCHES | 88.8 |
| MM | 2255 | |
| OVERALL HEIGHT | INCHES | 48.4 |
| MM | 1230 | |
| MAX JAW OPENING | INCHES | 31.7 |
| MM | 805 | |
| CUTTER BLADE LENGTH | INCHES | 7.1 |
| MM | 180 | |
| CRUSHING FORCE AT CENTER OF JAW | US Tons | 84 |
| kN | 750 | |
| CARRIER WEIGHT RANGE | 1000 LBS. | 48-84 |
| M TON | 22-38 | |
